ENERGY ISSUES

IN THE SAN DIEGO/TIJUANA REGION







Briefing Paper







Prepared by:

Alan R. Sweedler

Center for Energy Studies

San Diego State University



November 1999










This briefing paper was prepared for San Diego Dialogue’s Forum Fronterizo policy luncheon series, which is underwritten by The San Diego Union-Tribune and Sempra Energy. Additional funds for the preparation of this paper were graciously provided by the Public Policy Institute of California.

ENERGY ISSUES IN THE SAN DIEGO/TIJUANA REGION



Introduction

Energy is an indispensable lifeblood of the San Diego/Tijuana region. It makes homes and businesses comfortable, moves people and goods, operates the machinery of industry and powers the infrastructure that underpins the region’s communities. This pervasive role makes energy a key issue in the binational region’s future. Energy choices made today will have significant effects on tomorrow’s economy, environment and quality of life.

The energy sectors in the United States (including California), Mexico and Canada are undergoing major changes that will affect the way energy is produced, transmitted, distributed and sold throughout North America. These changes will directly influence energy use and energy-related infrastructure in the San Diego/Tijuana region.

Among the major energy-related issues currently facing the binational region are:

This paper analyzes the energy sectors in San Diego and Baja California and discusses issues related to meeting the future energy needs of the region. It summarizes the recent restructuring of California’s electric industry, as well as recent energy-related legislation in Mexico, and reviews the status of alternative sources of energy for the region, particularly those opportunities that may lie in Baja California. Finally, it discusses the problems and opportunities for development of the energy sector in the San Diego/Tijuana region and offers recommendations for improving cross-border collaboration to meet the future energy needs of the region.



An Overview of the Region

To understand the energy sector in the cross-border region, it is important to examine the context within which energy services are utilized. The most important elements are the region’s population and its expected growth, the region’s economic activities and the environmental impacts of energy production, transmission and end use. Although this paper is focused on the San Diego/Tijuana region, one must include the broader California/Baja California binational area to gain a full picture of the energy sector. Our energy systems are integrated over much larger areas than just the two cities. In fact, today’s energy markets are truly global, and a comprehensive analysis must recognize the global context of energy.

The term "border region" is not precisely defined. The La Paz Agreement between the United States and Mexico in 1983 defined the U.S.-Mexico border region as a zone stretching 100 kilometers on either side of the international boundary. However, for the purpose of analyzing energy flows and environmental issues, such as air pollution, this definition is not particularly meaningful. Energy and transportation systems are not localized within a narrow region, and the cities in the border area all have important linkages to other regions throughout the United States, Mexico and Canada.

However, for the California/Baja California border region, the 100-kilometer (62-mile) zone includes all of San Diego and Imperial counties and the Mexican municipios (the rough equivalent of U.S. counties) of Tijuana, Rosarito, Ensenada, Tecate and Mexicali. This area encompasses all main population centers of the region and contains its principal energy-related infrastructure, so the La Paz definition of the border zone can serve as a useful guide to define the region.

Population Growth

The population of the cross-border region has been expanding rapidly in recent years; forecasts predict that it will continue to grow substantially on both sides of the border. By 1998, San Diego County’s population stood at nearly 2.8 million. By 2020, the county’s population is projected to grow by an additional million people, to over 3.8 million.

In 1998, metropolitan Tijuana’s population was estimated at 1.2 million. Based on current demographic data and trends, the population of San Diego/Tijuana in 2020 is projected to be 5.8 million. Table 1 and Figure 1 show historical and projected population growth from 1930 to 2020. This continued population growth, particularly on the Mexican side of the border, is the main driving force behind the region’s growing energy needs.

Table 1: Historical and Projected Population Growth in San Diego and Tijuana

Year

San Diego

Tijuana

1930

209,659

11,000

1940

289,348

22,000

1950

556,808

65,000

1960

1,033,011

166,000

1970

1,367,200

341,000

1980

1,873,300

462,000

1990

2,520,500

747,381

1995

2,690,255

1,032,415

2000

2,896,900

1,125,200

2010

3,360,700

1,491,300

2020

3,791,400

1,946,300

Source: Ganster, Paul. Tijuana, Basic Information, Institute for Regional Studies of the Californias, San Diego State University, 1999.

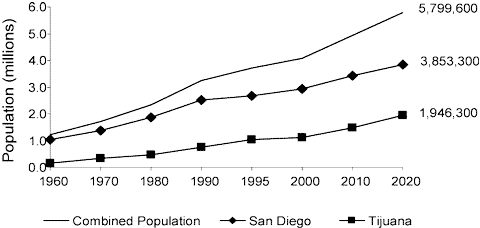

Figure 1: Population Growth in San Diego and Tijuana, 1960-2020

Tijuana Figures: Ganster, Paul. Sustainable Development in San Diego and Tijuana: A View from San Diego. May 15,1998.

San Diego Figures, 1960-1995: California Department of Finance, July 1 Estimates.

San Diego Figures, 1995-2020: SANDAG Regionwide 2020 Forecast.



Energy Use and the Regional Economy

Generally speaking, San Diego’s economy can be broken down into several main sectors, including defense, telecommunications and biotechnology, and the international trade and visitors industry. None of these sectors is considered to be an intense energy consumer when compared with heavy industries such as steel or auto manufacturing, but they do require adequate energy services, mostly in the form of reliable and high-quality electric power. By contrast, Tijuana, with a growing industrial base, is in need of both adequate power and liquid and gaseous fuels, such as natural gas and liquid petroleum gas (used for industrial processes).

San Diego: San Diego’s former reliance on defense spending allowed the region to be somewhat immune from the rest of state and national economic trends. The transition in the 1990s away from reliance upon defense dollars into more commercial and international endeavors has made San Diego’s economy much more entwined with the rest of California and the United States, as well as with Mexico and international markets.

San Diego’s continued economic expansion will push the gross regional product (GRP) beyond $90 billion before the end of the century. Since 1995, each year has established a new record in economic output for the county.

Tijuana: Tijuana’s economy is structured quite differently from that of San Diego. For energy use, the most important difference is the growing importance of the manufacturing sector, especially the large number of maquiladoras, which are large consumers of power, gaseous fuels and water. In 1998, there were 675 maquiladoras in Tijuana, with a work force of about 151,363 persons. The maquiladora sector is an important part of the local economy and accounted for about 48 percent of all job creation in Tijuana from 1980 to 1990.

In both San Diego and Tijuana, the transportation sector absorbs the greatest amount of energy consumption. Although, in dollar terms, the economy of San Diego is estimated to be some 20 times larger than that of Tijuana, the rising population on the Mexican side of the border, coupled with the increasing industrialization in northern Baja California, will disproportionately drive the region’s increased demand for energy services.

Some useful comparisons between San Diego County and Tijuana are given in Table 2.

Table 2: Comparing San Diego and Tijuana

Tijuana

San Diego

Area in square kilometers

1,393

10,891

Total population (estimated 1995)

1,237,000

2,835,200

Inhabitants per square kilometer

710.2

260.3

Births per 1,000 inhabitants (1992)

31.6

19.3

Infant mortality per 1,000 inhabitants( 1992)

26.9

7.1

Percent population with electricity (1992)

85.8

99

Paved roads (kilometers, 1994)

332,624

1,602,597

Solid waste generation (tons per day, 1995)

710

2,500

Per capita solid waste generation per day (kilos)

0.7

0.9

Municipal budget (U.S.$ millions, 1995)

49

3,031

Per Capita Energy Use (kWh, 1996)

1,608

6,333

Source: Plan Municipal de Desarrollo 1996-1998 (Tijuana: COPLADEM)

Source: Ganster, Paul. Tijuana, Basic Information, Institute for Regional Studies of the Californias, San Diego State University, 1999. Per Capita Energy Use was determined by the author.



The United States and Mexican Energy Sectors

The production, transmission, distribution and use of energy in the California/Baja California border region take place within the framework of the larger energy markets of California, the United States, Mexico and (to some extent) Canada. Energy infrastructure in North America is highly integrated. Power transmission grids and natural gas pipelines criss-cross the North American continent and link the energy systems of the three North American countries. High-power transmission lines routinely transmit electricity generated in Canada or Mexico for use in the United States, and vice-versa. Natural gas produced in Canada is transported to U.S. markets by trans-border pipelines, and trade in natural gas has begun to take place between the United States and Mexico.

To analyze the energy sector in the border region, it is therefore necessary to briefly discuss the larger North American energy context, focusing on the United States and Mexico. The structure of the energy sector in the United States and Mexico differ significantly from one another; how energy is used also differs markedly.









Energy Sources and Uses

The United States utilizes a broader spectrum of energy resources than Mexico, drawing on coal, oil, natural gas, nuclear and hydropower, as well as a small amount of renewable resources. Mexico, by contrast, is heavily dependent on oil and natural gas, with the notable exception of geothermal resources in the state of Baja California.

The United States is the world’s largest oil consumer, consuming over 18 million barrels a day (bbl/d) in 1997; of these, 8 million bbl/d were imported, including 1.36 million bbl/d from Mexico. Mexico, by contrast, is self-sufficient in petroleum. In 1998, Mexico produced about 3.52 million bbl/d and consumed about 1.9 million bbl/d. Net oil exports amounted to 1.5 million bbl/d, of which 1.33 million bbl/d went to the United States. Crude oil production increased by about 2.4 percent over 1997 levels, following a 5 percent increase from 1996.

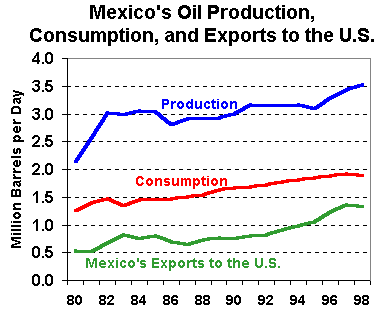

Figure 2 shows Mexican petroleum production, consumption and exports to the United States from 1980 to 1998.



Figure 2

Source: United States Energy Information Administration, Mexico Graphs, April 1999.

The energy resources used in the generation of electricity also vary between the two countries. For the United States, coal is the principal fuel for electric generation, followed by nuclear, hydro, natural gas, oil and small amounts of renewable sources. Mexico’s main electric generating fuel is oil, followed by hydro, natural gas, coal, geothermal and small amounts of nuclear and other renewables. The different mix of fuels for electric generation between the two countries is important when considering energy use in the binational region. In San Diego, for example, natural gas and nuclear energy are the main energy resources for power generation; in Baja California, oil and geothermal energy are the principal energy resources.

The U.S. Energy Sector

The U.S. energy sector is for the most part owned and operated by private companies. Although in private hands, energy companies are regulated by state and federal agencies. The price of coal, oil and natural gas is largely determined by market factors, and relatively uniform prices exist across the United States. The price for electricity, however, has traditionally been established by state regulatory agencies and has not been determined directly by market forces until very recently. The retail price for electricity can vary by up to a factor of four across the country.

Retail electricity rates in California in general, and San Diego in particular, are among the highest in the nation. The comparatively high electricity prices in California was the prime motivating factor behind the restructuring of the state’s electric industry, which went into effect in January 1998 (see Appendix I). A highly competitive and partially deregulated electric sector in California will have a significant impact on cross-border electricity trade with Mexico; in fact, Mexico’s national electric utility has already begun purchasing electricity from the California grid.

Some of the agencies responsible for regulating the energy industries in the United States are the Federal Energy Regulatory Commission (FERC), the U.S. Department of Energy (DOE), the Nuclear Regulatory Commission (NRC), and state public utilities commissions. In California, the California Public Utilities Commission (CPUC) and the California Energy Commission (CEC) are the principal agencies that oversee the energy sector. At the local level, city and county jurisdictions may have to grant approval for energy-related construction such as gas pipelines and power transmission lines. In San Diego, coordinating agencies such as the San Diego Association of Governments (SANDAG) also play an important role in long-range energy planning.

Mexico’s Energy Sector

In contrast to the way energy is handled in the United States, the production, distribution, and management of energy supplies in Mexico are, by and large, under the control of the federal government. The federal government also sets energy prices. The Secretaría de Energía (SE) is the key government ministry responsible for formulating energy policies. SE has direct oversight over the Comisión Federal de Electricidad (CFE, the national electric utility), Petroleos Mexicanos (Pemex, the state-run oil and gas monopoly), the Comisión Nacional Para el Ahorro de Energía (CONAE, the national energy conservation commission) and several energy related research institutes. A relatively new agency, the Comisión Reguladora de Energía (CRE), was established in 1993.

The power sector in Mexico is dominated by the state-controlled Comisión Federal de Electricidad (CFE). Like Pemex in the oil and gas industry, CFE has enjoyed a monopoly in the electric power sector for decades, although reforms instituted in 1992 allow independent power producers (IPPs) and cogenerators to sell power to CFE.

Pemex is the world’s sixth-largest oil company, the single most important entity in the Mexican economy and a symbol of Mexican sovereignty and independence. Nationalized in 1938, it controls virtually all areas of the oil and gas sectors and provides a major source of government revenues. Mexico’s president, Ernesto Zedillo, has reaffirmed many times in recent years that Pemex will remain in state hands, despite the fact that the oil sector in Mexico is badly in need of modernization and investments.

Mexico’s electricity sector is at a crossroads as of 1999. In 1997, Mexico generated 164 billion kilowatt-hours (kWhrs) of electricity, and although this figure represents a large increase over the past decade, Mexico’s electricity supply is not expected to meet projected demand growth (5.8 percent-6.0 percent annually) over the next 10 years. Even today, although about 95 percent of Mexican households are electrified, there are still approximately 83,000 rural towns without electricity. Given current grid capacity, electricity shortages in Mexico could soon occur.

Mexico’s energy ministry (SE) has announced that about 13 gigawatts (GW) of electric generating capacity and about $25 billion of investment are needed through 2006 to keep pace with demand. Failure to make these investments could adversely affect the international competitiveness of key northern industrial regions, as well as possibly leading to occasional blackouts. Currently neither CFE nor the government has the funds for these investments. In fact, projected power investments are more than Mexico spends annually on education, health and social security combined. Moreover, Mexico’s existing power distribution network is in need of extensive repairs and experiences transmission losses of more than 15 percent, about twice that of the United States.

In the near term, Mexico is moving rapidly to expand its capacity through new facilities and increased connections to the United States. This year, Mexico hopes to license nine new generation facilities, 11 transmission lines and four new connections with the U.S. electricity grid, the last aimed at quickly increasing power availability to the fast-industrializing Mexican side of the border. Over the long term, however, meeting Mexico’s future energy needs will be closely tied to the successful reform of its energy sector.

Electricity Sector Liberalization in Mexico

In early February 1999, in an attempt to deal with these projected power shortfalls, President Zedillo sent legislation to Congress that would result in a wide-ranging overhaul of the country’s electricity sector, ending decades of state domination. Several new laws have recently been introduced to open the Mexican energy sector to private investment. Proposed reforms to the Electrical Power Law and related legislation would open the electric sector to private investment in independent power production, self-supply cogeneration and small-scale production. These new laws will have important implications for the development of energy-related infrastructure in the border region, such as the construction of natural gas pipelines to supply U.S. gas to Mexicali and Tijuana.

The proposal builds on 1992 electricity reforms that allowed private companies to generate electricity for their own use or for sale to the CFE. Under this new plan, private concerns would be allowed to distribute power under concessions of about 30 years. Currently, only state-owned entities are permitted to distribute electricity in Mexico. Zedillo’s plan aims to open the door to increased competition, to increase Mexico’s electricity supply, to lower consumer prices for electricity, and to modernize and expand the country’s transmission and distribution systems. In the process, the role of the state would change from one of power-sector owner and operator to regulator, somewhat similar to what exists in the United States.

Two major components of the reform effort include new opportunities for independent power producers (IPPs) and the further integration of Mexico’s electricity grids with those of the United States and Canada.


Independent Power Projects: The CFE announced in early 1999 that it plans to tender five projects in 1999 for independent power producers with generation capacity of 2,800 MW. The IPPs would enter operation between 2001 and 2004, with a combined investment of $2.1 billion. Due to CFE budget restrictions, the CFE has begun favoring the use of IPPs that sell power to CFE for distribution.

Integration of electricity grids with the United States and Canada: Proposals for liberalizing Mexico’s electricity sector have implications for integration with the United States and Canada, as well as a possible "Yukon to Yucatan" electricity grid. Currently there is a shortage of transmission link-up capabilities between the United States and Mexico. In a landmark ruling in late April 1998, the U.S. Federal Energy Regulatory Commission required utilities to open their long-distance transmission lines to competing power providers. Before this ruling, U.S. border utilities controlling interconnections with Canadian and Mexican utilities were able to bar competitors easy access to foreign power markets.

Mexico is seen as an especially lucrative power marketing opportunity, given its fast-growing demand for electricity. Demand growth in Mexico is more than three times that of the United States. Energy Minister Luis Tellez has stated that he would like the CFE to enter into agreements with U.S. utilities for medium-term contracts to import power. Tellez also would like to connect northeastern and east-central Mexico to the Texas and Arizona power grids. Tellez has stated his belief that power imports would increase competition in the Mexican electric power sector and would lead to lower prices. Importing power from the United States would allow Mexico to invest its capital in transmission and distribution.

Zedillo’s proposals have been met positively by the Mexican private sector, as well as by U.S. and other international energy companies. International companies (especially from the United States) are expected to play a major role in bringing online the new generating capacity that CFE will need, especially in northern Mexico, including Baja California. Power companies have long sought greater involvement in Mexico’s electricity sector. U.S. generators are particularly optimistic about these proposals, as liberalized markets would allow producers to generate and produce power in the United States, strengthen interconnection between the two countries’ grids and increase cross-border transmission of electricity.

International companies, however, will need to see the rules outlined very clearly before they invest heavily. The Mexican government also will need to create a regulatory framework to clarify the position of IPP projects granted under the existing regime. Zedillo’s plan would entail amending Articles 27 and 28 of the Mexican Constitution, and could face significant political opposition. Along with concerns about job security, labor unions have voiced objections to foreign domination and threats to the national sovereignty of the country's electricity sector.



NAFTA and Energy

The treatment of the energy sector in the North American Free Trade Agreement (NAFTA) is perhaps most significant for what it lacks. Pursuant to the restriction in the Mexican Constitution that reserves to the Mexican federal government all ownership of Mexico’s basic energy resources, NAFTA does not create significant new opportunities for private investment in oil, gas, refining, basic petrochemicals or direct delivery of electricity. These activities remain controlled by Pemex and CFE. Nevertheless, NAFTA does provide new opportunities for private energy companies, particularly those in the electric power industry. Under NAFTA, foreign companies can acquire, establish and operate electric generation facilities in Mexico. Electricity generated at these facilities can be used at the site or sold to CFE. Moreover, the opening of the Mexican government procurement market will create opportunities for foreign companies to compete with Mexican entities for supply and service contracts with Pemex and CFE.

NAFTA reserves to the Mexican State goods, activities, and investments in the oil, gas, refining, basic petrochemicals, nuclear and electricity sectors. Consistent with Mexico’s move to greater privatization of industries and resources, however, NAFTA opens many downstream activities in the energy sector to greater private investment, both foreign and domestic. NAFTA also expands on Mexico’s current Build-Lease-Transfer ("BLT") program, which permits foreign companies to build an energy facility while leasing the site during construction and then to transfer the plant back to the government shortly before commercial operation. With the full implementation of NAFTA, foreign companies will be able to own the plants and earn profits on sales of power back to the CFE for the life of the facility. In addition, NAFTA’s gas provisions potentially enable U.S. owners of gas-fired cogeneration facilities and other gas-fired facilities in Mexico to arrange for competitive gas supplies from U.S. gas companies.

NAFTA aims for more open markets in the energy sector, but it remains unclear whether those markets will provide sufficient returns to support increased investment. Still to be worked out are:

Genuinely open oil and gas markets are not created under NAFTA, and the effect of the agreement’s electricity provisions will depend greatly on how they are implemented. This will depend, in turn, on the extent to which the Mexican administration succeeds in bringing reform and a market-oriented spirit to Pemex and the CFE.



The Energy Sector in the California/Baja California Region

The outstanding characteristic of energy use in the binational area is the almost total dependence on energy resources from outside the region. With the notable exception of the geothermal fields located south of Mexicali, virtually all of the energy consumed in the region originates from distant places. These "imported" energy resources are in the form of petroleum products (gasoline, diesel, jet fuel, liquefied petroleum gas and fuel oil), natural gas, uranium and imported electricity. For example, approximately $3 billion per year left the San Diego economy to pay for this energy in 1994, the latest year figures were available. All of Baja California’s transportation, industrial and residential fuels must be transported long distances from refineries located far to the south in Mexico. Moreover, the electric power grid in Baja California is not connected to the main Mexican power system and the state has no natural gas pipeline system, with the exception of a small distribution system in Mexicali.

The salient features, then, of the energy sector in the binational region are:

These facts help to provide a rationale for developing increased cooperation in the energy field between California and Baja California.

With these general observations, we now turn to a detailed description of the energy sectors of Baja California and San Diego.

Energy Sector of Baja California

Baja California derives its energy from basically two sources: petroleum products and geothermally generated electricity. All of the petroleum products are imported to the region from other parts of Mexico, especially from north-central Mexico and the Peninsular Area. There are no oil refineries in Baja California; most petroleum products enter the region via a products terminal at Rosarito, brought there by tankers.

The transportation sector in Baja California uses leaded and unleaded gasoline and diesel. Liquid petroleum gas (LPG) substitutes for natural gas and is used mostly in the residential sector, but also in the industrial and commercial sectors. Like San Diego, the transportation sector in Baja California is the largest user of energy. The main fuels currently consumed are gasoline and diesel fuel. By 1995, unleaded gasoline (Magna Sin) was in widespread use in Baja California and constituted the principal gasoline fuel for cars and light-duty trucks. This has resulted in a corresponding drop in lead emissions to the atmosphere. Diesel fuel is used mostly by buses and heavy-duty trucks.

Electric Power in Baja California

Baja California’s electrical energy infrastructure consists of two large power-generating facilities (about 620 megawatts each), several smaller generating plants and appropriate transmission lines. The power grid is connected to San Diego via two 240 kV lines, one near Tijuana and the other Mexicali. Installed capacity for Baja California is shown in Table 3.



Table 3: Installed Capacity (megawatts/MW), Baja California, Mexico

Type

Location

Capacity (MW)

Geothermal

CP (Mexicali)

620

Thermoelectric

Rosarito

620

Gas Turbine

Mexicali

62

Gas Turbine

Tijuana

60

Gas Turbine

Ensenada

55

Internal Combustion

San Felipe

5

Total Installed Capacity

1422



The main power plant supplying power to Tijuana–the 620-MW plant in Rosarito, just 24 kilometers from the border–burns heavy oil and is the largest fixed source of air pollution in the region. One of the most important energy-related issues facing the San Diego/Tijuana region is to proceed with plans to convert this power plant to natural gas, consistent with Mexico’s stated industrial energy policy to convert a significant percentage of Mexico’s thermoelectric plants to natural gas by 2005.

The only indigenous energy source utilized on a large scale in Baja California is geothermally generated electricity, located south of Mexicali at Cerro Prieto. Until a few years ago, power from Cerro Prieto was exported to Southern California under a contract with Southern California Edison (SCE) and SDG&E. These exports peaked in 1987 and 1992, and accounted for 12 percent and 10 percent, respectively, of San Diego’s electricity supply in those years. Electric imports from Mexico to San Diego ended in 1996, as supply in Baja California has barely kept up with growing internal demand.

Between 1996 and 1998, electric consumption increased 22 percent for the state of Baja California and 25.8 percent for Tijuana. These are very large increases and have put a significant strain on the CFE’s generating capacities in Baja California. (By comparison, electric use in San Diego County increased by only 7.4 percent in the same two-year period.) In Tijuana, the industrial and residential sectors are the major users of electricity. This is different from electric use patterns in San Diego, where the commercial and residential sectors consume more electricity than the industrial sector. The difference in electric energy use between Tijuana and San Diego reflects the fact that manufacturing and assembly activities form a larger part of the economy in Tijuana than they do in San Diego. Consumption of electricity by sectors for Baja California for the period 1994 to 1996 (latest available) is provided in Appendix II.

In Mexicali, residential electric consumption is more than twice that of Tijuana, even though Mexicali’s population is less than Tijuana’s. Mexicali has some of the highest temperatures in Mexico, with daily average outdoor temperatures well above 90ºF for July and August. It also has very energy-inefficient housing infrastructure, mainly due to the poor shell characteristics of the housing stock and the low efficiency of the electric devices used for air-conditioning. In fact, Mexicali has the highest per-capita residential energy use in Mexico. The inefficient air- conditioning sector in Mexicali is an obvious area where improvements could be made. Reduced air-conditioning loads would result in a reduction in demand for electricity in Baja California. Several programs are under way to increase the energy efficiency of the housing stock and reduce air-conditioning loads in Mexicali.

Although per-capita electric use in Baja California is greater than the Mexican average, it is still much less than San Diego’s. For Baja California as a whole, per-capita electric use for 1996 was only 2,147 kWh, only one-third that of San Diego (6,333 kWh). For Tijuana, per-capita electric use was only 1,608 kWh, only one fourth of San Diego’s. Mexicali, with 3,268 kWh per capita, is the highest per-capita consumer in Baja California.

It is important to note, however, that demand for electricity in Mexico has increased at a much higher rate than in the United States and will continue to do so. The CFE estimates that demand for electric services will increase at an annual rate of 5.7 percent between now and 2005 for northern Mexico, compared with 4.7 percent for the country as a whole. Should these high rates of growth continue, this implies a doubling of demand for electric services in just 12 years.

The Future Energy Needs of Baja California

The process of estimating future energy needs and planning to meet those needs in Mexico is quite different from the process in California. There are no counterpart agencies in Mexico or Baja California to the Public Utilities Commission, the California Energy Commission or the San Diego Association of Governments. Future electricity demand has traditionally been estimated by the CFE based more or less on historical growth patterns, rather on than a detailed analysis of the different electricity-consuming sectors.

A more detailed analysis of future electric demand was carried out by researchers at the Universidad Autónoma de Baja California (UABC) in 1994, the latest available. This analysis took into account market development, energy reserves and alternative energy resources in Baja California. The study estimated annual electric sales growth rates of 4.6 percent for the next decade, somewhat lower than estimated by the CFE, but still at least more than double what is expected in San Diego. To meet this expected demand, an additional 960 MW of installed capacity will be needed, representing an increase of 78 percent relative to 1994. New electric customers are expected to grow by 5 percent per year. By the year 2003, Baja California will have 796,000 electric customers, 90 percent of whom will be in the domestic sector.

To help meet this demand, CFE hopes to add 450 MW by 2002 to the existing 620 MW facility at Rosarito, 100 MW at the geothermal plant at Cerro Prieto this year, and a combined cycle plant of 225 MW in Mexicali by 2004. This would total 775 MW of new capacity, still 185 MW short of expected demand. Even these additions, however, are a long way from actual implementation, partially due to oil prices that were much lower than expected oil prices this year, significantly limiting Mexico’s ability to invest in its electric infrastructure.

Instead of increasing generating capacity within Baja California, expected demand might be met by purchasing more electricity from the North American power system and integrating Baja California more fully into the electric transmission system of the United States. As noted earlier, the Baja California power grid is isolated from the Mexican national system but is connected to the California system at two points. This permits a limited amount of power transfers between the western North American system and Baja California. As restructuring of the California electric sector gains momentum, electric customers and energy brokers will be searching all over North America for the cheapest power available. It may prove cost-effective for the CFE in Baja California to both buy and sell power within this very large electric market. Large consumers of power in Baja California, such as industrial parks, may find it cheaper to purchase power from the United States than from the CFE. Similarly, customers in San Diego may find it less costly to obtain power from the CFE in Baja California or from independent power producers in Mexico, rather than from local generators in the United States.

Baja California’s Natural Gas Market

As mentioned earlier, Baja California has no direct access to the abundant natural gas resources of Mexico because of its location relative to the sources of Mexican natural gas. There is, however, a growing recognition that natural gas would be an ideal fuel to meet the region’s growing demand for industrial heat and electric generation and that the United States, and perhaps Canada, can serve as a source of natural gas for Baja California if appropriate cross-border pipelines are constructed.

The use of natural gas for power generation in Baja California is of particular importance to the San Diego/Tijuana region. Since the principal thermal power plant in the Baja California is just 24 kilometers south of the border and burns heavy fuel oil, supplying that plant and its planned additions with natural gas could improve air quality in the region while, at the same time, providing natural gas to industries and residents of Tijuana. Gas-fired electrical generation produces almost no sulfur oxides and is generally more efficient than an oil-fired plant.

In July 1997, a Swedish-Japanese joint venture won a $244 million contract to build a 450 MW expansion to the Rosarito power plant. If completed, the total installed capacity at the site would be 1,160 MW. The plans called for the plant to utilize natural gas. In August 1998, Sempra Energy (formed by the merger of SDG&E and Southern California Gas), won the contract to supply natural gas to the Rosarito site. Sempra Energy will spend about $40 million to build the 23-mile pipeline and hopes to generate about $1 billion in revenues by supplying natural gas over the next 10 years.

A similar project has already been completed to bring natural gas from California to Mexicali. In March 1996, the Mexican government, through its Energy Regulatory Commission, called for bids to construct a pipeline system to supply natural gas to Mexicali. The project was awarded to a consortium of three companies: Enova, Pacific Enterprises (now Sempra Energy) and Proxima, a Mexican company based in Mexicali. The consortium, known as Distribuidora de Gas Natural de Mexicali (DGN), has a 12-year exclusive contract for the distribution of natural gas to more than 25,000 users in Mexicali.

For the first time in Baja California’s history, natural gas is now available via a pipeline crossing the border east of Calexico, near the recently opened truck crossing facilities. As of May 1999, 50 industrial customers, 32 commercial businesses and 350 residences have been connected to this distribution system.

Renewable Sources of Energy

It was noted earlier that both San Diego and Baja California are heavily dependent for energy supplies on fossil fuels (petroleum products and natural gas) that originate far from the region. Not only does this represent an outflow of regional capital, but also the burning of fossil fuels is a major source of air pollution. It is, therefore, of interest to examine the potential for development of indigenous and renewable sources of energy in the border area as a long-term replacement for fossil fuels.

Although Baja California has an impressive array of renewable energy resources, very few of these resources have been developed to produce significant amounts of energy. The main reasons for the lack of renewable energy development in Baja California are the same that plague renewable energy development everywhere: relatively low costs for oil and natural gas coupled with relatively high initial capital costs for most renewable energy projects. These factors present even more of an impediment for the development of most renewable projects in Mexico, because of the plentiful supply of oil and gas and the lack of capital.

Renewable energy resources in Baja California consist of geothermal, microhydroelectric, biomass, wind, solar, and tidal. With the exception of geothermally generated electricity, none of these renewable resources has been significantly exploited to date.

Geothermal: Baja California is home to some of the largest geothermal reserves in Mexico. These considerable resources are located at Cerro Prieto in the Valley of Mexicali, about 30 kilometers from the international border. An intriguing potential source of even greater geothermal energy than that found in the Valley of Mexicali might be in the form of geopressurized deposits (high-temperature, high-pressure water located beneath the sea bed), located in the northern part of the Gulf of California. This region displays characteristics found nowhere else in the world for the development of marine geothermal resources. The initial geothermal potential has been estimated to be tens of times greater that that of Cerro Prieto.

Geothermal Binary Cycle: There is potential to use heat from the residual brine that results from the operation of the geothermal fields at Cerro Prieto. The fields have an installed capacity of 620 MW and, when in full operation, produce 12,000 tons of residual water per hour with a temperature range of 120ºC to 135ºC. This represents an important amount of useful energy for a binary cycle operation. Estimates suggest that as much as 246 MW of additional power could be produced in this fashion.

Microhydroelectric Power: An interesting renewable technology that could prove practical in Baja California is microhydroelectric power generation in the Valley of Mexicali. This is based on capturing the energy in the flow of water from the extensive irrigation system that exists in the agriculture-intensive region surrounding the city of Mexicali. Estimates as high as 80 MW have been suggested for microhydroelectric generation.

Solar, Wind and Biomass: Although the potential contribution to the region’s energy mix from solar (thermal and electric), wind power and biomass could be significant, there are no comprehensive studies that have quantified the energy potential of these resources.

San Diego’s Energy Sector

The last comprehensive analysis of the energy sector in San Diego was carried out by SANDAG in 1995. Although the regulatory framework of the energy sector has changed dramatically since that time, the underlying energy supply, distribution and end use for the region are about the same as they were when the SANDAG study was carried out.

The main features of the energy sector in San Diego are the dominance of the transportation sector in terms of energy consumption, the high proportion of electricity imported from outside the region, and relatively high electricity and gasoline prices. Transportation accounts for over 60 percent of end-use energy consumption in San Diego, followed by the residential, commercial, and industrial sectors. This energy consumption pattern reflects the structure of the San Diego economy; most San Diego residents commute to work in private automobiles with one or two occupants. Moreover, most of the rapid population growth during the last 10 years has occurred in the northern sections of the county, resulting in longer commutes from home to work.

In 1997, close to two-thirds of the electricity consumed in San Diego was purchased outside the region, an increase of 42 percent over 1996. In 1998, 17,249 million kWhrs of electric energy were used in San Diego, an increase of 3.2 percent over the preceding year. The power- consuming sectors in San Diego are the commercial (39 percent), residential (36 percent) and industrial sectors (18 percent). Note the comparison with Tijuana, where the electric usage in the industrial sector accounts for a much larger portion of total consumption than in San Diego.

The major power-related infrastructure elements in San Diego consist of two large thermal power plants located in Carlsbad (Encina) and Chula Vista (South Bay) plus the San Onofre Nuclear Generating Station (SONGS) located just south of San Clemente, 20 percent of which is owned by SDG&E. All thermal power plants operating in the county use natural gas, and there are only two high-voltage (500 kV) transmission lines, one to the north and the other to the east, responsible for carrying all the imported power into the region.

As allowed under California’s restructured electric market (see below), it is now possible, and required in some cases, for the state’s investor-owned utilities, such as SDG&E, to sell its power generating facilities. Last year Sempra Energy sold its two main power plants in San Diego, the Carlsbad and Chula Vista facilities. The Carlsbad plant, the largest thermal power plant in the county, was sold for $356 million to a partnership composed of the Houston-based Dyenergy Inc. and NRG Energy Inc. The price was considered well above book value for the plant. The new owners can continue to operate the plant and sell its power to the power exchange, or they may decide to construct a new generating facility at the site, using more modern and efficient technology than what is currently in place. Should they take the latter course, most of the needed permits will be in place since the site is already being used for a power plant. This would save them considerable time and expense, and may account for the high price they paid for the plant.

Sempra Energy also sold its Chula Vista plant last year to the Port Commission for $100 million. With these two sales, Sempra Energy’s only remaining major generating holding is its 20 percent share of the San Onofre Nuclear Generating Station (SONGS).

Electric Industry Restructuring in California

The most important energy-related development in the last few years has been the restructuring of California’s electric utility industry. This reorganization of the electric sector will have an important impact on San Diego and could result in increased trade in energy services between San Diego and Baja California. A detailed summary of the restructuring of California’s electric utility industry is provided in Appendix I.

Through reforms passed by the California legislature, a significant new element of competition has been introduced into the electric utility sector in the state. The intent of the legislation is to create competition among potential generators of electricity, thereby letting an electricity market set the price for the electricity-generating component of a customer’s electricity bill. These reforms have effectively separated, or "unbundled," the generation of electricity from its transmission and distribution. State-created entities serve to create a market for electric power, through an auction-like function that matches requests to buy a quantity of electricity at a given price with an assured supply. This function solicits bids from electricity generators and chooses the lowest bidders until there is enough supply to meet the requests to buy power.



The Impact of Electric Restructuring in the Binational Region

It is too early to tell exactly what effect the restructured electricity market will have in the San Diego/Tijuana region, but the impact is likely to be significant. By opening power generation to competition and ensuring equal access to the transmission system, the way is open for greater integration of Baja California’s power sector into California’s energy markets.

The combination of electric restructuring in California and gradual opening of the energy markets in Mexico allow for a degree of energy trading across the border that would have been difficult or impossible a few years ago. The following are some possibilities opened by these reform efforts:



Challenges and Opportunities

A secure supply of reasonably priced energy with a minimum of environmental impact will be needed for the San Diego/Tijuana region if it is to remain competitive in the global economy. Given the high population growth expected in both San Diego and Tijuana over the next 10 to 20 years, meeting increased demand for energy in services will prove to be one of the most important challenges facing the region.

Meeting this challenge will require effective cooperation and coordination between the privatized energy market players and the local and state agencies still responsible for regulating the energy sector in California. Complicating the development of new methods of planning for future energy-related infrastructure is the lack of formal cross-border energy planning, coordination and cooperation. The impediments to creating a healthy energy supply system in the binational region are not mainly technical or financial, but grow out of the absence of planning, forecasting and coordination at the binational and regional level. Listed below are some suggestions to meet the challenge of meeting the energy needs of the San Diego/Tijuana region.

The underlying logic of electric restructuring in California, the opening of the energy sector in Mexico to private investment, and the growing economic interdependence of California and Baja California will inevitable lead to greater cross-border trade in energy services between San Diego and Tijuana. This trade is likely to take place in the buying and selling of electricity by California-based entities and by private and government power plants based in Mexico. We also expect natural gas from the United States to be available in Tijuana in the future. In the open market for energy services that is emerging on both sides of the border, the final price to consumers will be the most important element in deciding where to purchase energy; the location of the energy source will become less relevant than it is today. Over time, the international border will become less of a barrier to energy flows, a consequence of the continued integration of the cross-border region.

APPENDIX I: THE RESTRUCTURING OF CALIFORNIA’S ENERGY SECTOR



On Sept. 23, 1996, Gov. Pete Wilson signed legislation that dramatically changed the regulatory system governing electric utilities in California. In outline, the new law, commonly known as AB (Assembly Bill) 1890, accomplishes the following:

AB 1890 effectively separates, or "unbundles," the generation of electricity from its transmission and distribution. Power plant owners now have the opportunity to sell electricity to customers with whom they have negotiated sales contracts, to sell electricity into a general "pool" (the Power Exchange, described below) from which large customers and distribution utilities may draw to meet their needs, or to "aggregators," which are companies that have signed contracts with many small customers to provide their electricity needs. The transmission and distribution of electricity still is a regulated monopoly under control of the local utility–in this case, SDG&E. However, SDG&E cannot refuse to transmit and distribute power from qualified generators, and it must charge the same tariff to all generators. The intent of the legislation is to create competition among potential generators of electricity, thereby letting an electricity market set the price for the electricity-generating component of a customer’s electricity bill. The role of regulators is to ensure that competition is allowed to flourish and that no companies can dominate the market and set prices.

It should be kept in mind that the generation portion of the final retail price for electricity is only about 30 percent in the San Diego region. Thus, reduction of a few percentage points in generation costs will result in only a small decrease in the price customers pay for electricity, unless the transmission and distribution (T&D) sectors are also opened to competition.

AB 1890 created three new entities: the Independent System Operator (ISO), the Power Exchange (PX) and the Oversight Board. The Independent System Operator oversees the operation of the high-voltage electricity transmission system in California. Western North America is interconnected by many high-voltage electric lines. These lines allow electricity to be generated in one area and used in another, in a geographic region that extends from Colorado to the Pacific and from Canada to northern Mexico. The major responsibility of the ISO is to ensure fair and impartial access to the transmission system for all generators, while maintaining reliable operation. Since the high-voltage lines are the electrical "highways of commerce," the ISO will ensure that no particular buyer or seller of electricity can block access by others.

The Power Exchange (PX) accepts requests to buy a quantity of electricity at a given price. The PX functions like an auction, matching total demand for power with generation of power; in fact, in late October Mexico’s CFE began purchasing power from the PX. The PX creates a "pool" or "spot market" where price information is publicly available. The PX solicits bids from electricity generators and chooses the lowest bidders until it has enough supply to meet the requests to buy power. PX prices will change on an hourly basis. Many customers pay for electrical power based on this price, either directly through their distribution utility or through a private power supply contract with terms that are pegged to the PX price. Thus, consumers who choose to enter into private contracts for power, where the terms, conditions and price are not public knowledge, may use the public information from the PX to gauge the attractiveness of supply or service offers they receive.

An Oversight Board of five members oversees the restructured electricity market. The governor makes three appointments to the Oversight Board and the Legislature makes two appointments. The legislative appointees are non-voting members of the board. The Oversight Board has established a governing board for the Independent System Operator and another for the Power Exchange. Both the Independent System Operator and Power Exchange are private, not-for-profit California corporations. They are not government agencies.

The governing board for the Independent System Operator is composed of individuals involved in the generation, transmission, distribution, purchase, sale and use of electricity. Appointments are drawn from public interest groups and individuals not directly involved in the electricity market. The Power Exchange governing board also consists of representatives drawn from all aspects of the business of the Power Exchange and from sources not directly involved in the electricity business. The objectives in having such a wide representation of all market interests on the ISO and PX governing boards are to ensure that no one interest can dominate the market and that robust competition will prevail.

APPENDIX II

Electric Sales for Baja California and Municipalities

1994-1996

(Megawatt hours)

Sector

Baja California

Ensenada

Mexicali

Tecate

Tijuana

1994

1995

1996

1994

1995

1996

1994

1995

1996

1994

1995

1996

1994

1995

1996

Residential

1,593,361

1,658,829

1,792,602

132,098

138,098

147,263

955,612

980,308

1,070,708

30,440

31,938

33,931

475,261

508,485

540,700

General

373,866

377,195

394,019

47,961

47,986

48,532

146,235

149,294

159,842

11,754

12,008

12,781

167,916

167,907

172,864

up to 25 KW

General

146,163

146,146

148,857

7,106

6,970

6,794

71,431

69,714

70,208

608

3,493

4,146

67,018

65,969

67,709

greater than

25 KW

Public

68,094

77,722

75,904

12,796

12,203

12,063

27,486

33,837

32,107

2,249

2,470

2,753

25,563

29,212

28,981

lighting

Drainage

31,018

30,776

30,769

8,253

7,819

7,658

10,594

10,793

11,808

2,713

3,179

2,425

9,458

8,985

8,968

water

pumping

Temporal

155

113

395

55

42

148

11

29

247

89

42

-

General

1,954,390

2,134,304

2,633,359

194,631

212,031

221,895

869,670

917,620

1,171,407

58,490

62,928

74,164

831,599

941,725

1,165,893

high

tension

Agricultural

126,540

135,081

169,118

47,868

55,035

64,233

73,207

74,044

98,214

2,174

2,330

2,740

3,291

3,712

3,931

irrigation

TOTAL

4,293,587

4,560,166

5,245,023

450,768

480,184

508,586

2,154,246

2,235,639

2,614,541

108,428

118,346

132,940

1,580,195

1,726,037

1,989,046

Source: La Economía de Baja California en Cifras 1998

Gobierno del Estado de Baja California, Secretaría de Desarrollo Económico, Mexicali, Baja California.

Margarito Quintero Nunez, UABC

ABOUT THE AUTHOR

Alan Sweedler is director of the Center for Energy Studies and Environmental Sciences at San Diego State University, where he is also professor of physics. He served as vice-chair of the Energy Advisory Committee, which drafted the San Diego Regional Energy Plan. The Regional Energy Plan was adopted by the San Diego Association of Governments in 1995 as an element in the region’s growth management strategy. Dr. Sweedler is currently the vice-chair of the San Diego Regional Energy Office, a joint project of SANDAG, San Diego Gas & Electric and San Diego State University. He is also a member of the California Energy Commission’s Policy Advisory Council.

Dr. Sweedler specializes in the area of energy technology analysis, energy modeling and policy at the local and regional level, and the environmental consequences of energy use. In recent years he has focused on energy use and its effects on air quality in the U.S./Mexico border region.

Dr. Sweedler is the author of more than 40 journal articles, technical reports and book chapters, and is the co-editor of four books. Some of his recent publications include: Energy and Environment in the California-Baja California Border Region, (1996); The Energy Sector of Baja California, (1997), Sources of Air Pollution in the U.S.-Mexico Border Region (1997) and Modeling Emissions from Heavy Duty Trucks in the California-Baja California Border Area (1997). His research has been supported by the National Science Foundation, the California Energy Commission, and the U.S. Environmental Protection Agency.











































NOTES
